CGDI BMW program BMW F series ECU after coding

How to use CGDI BMW key programmer to program BMW F series ECU after coding?
Here is the detailed guide for CGDI programmer owners.
Step 1: Connect to CGDI Prog BMW MSV 80
Step 2: Coding
Step 3: Program ECU
Step-by-step guide:
Step 1: Connect to CGDI Prog BMW MSV 80
Connect CGDI Prog BMW to the car and PC
Turn on the ignition switch

Step 2: Coding
Go to CGDI BMW Software Menu
Click on “BMW F/G Series Program”

Read Central gateway module 2 data successfully

Click “Program”
Note: ECU is about to programmed, please ensure that car battery has enough power, the programming process, please keep equipment cable connection. Whether to continue?
Click “YES”

Prompt “Whether to backup coding data”
Click “YES”

Coding is successful
Step 3: Program ECU
Getting a list of programming files from the server
Select all options and click “OK”

Please confirm whether the following VIN is correct. If it’s wrong, please modify in the textbox below.
Then click “OK”

Programming ECU

Program ECU Successfully
Note:
1.If the code is not set after programming, please use the function of "BMW F/G coding" to set the code. If some modules (such as gateway) do not need the code setting, this step can be ignored.
2.Airbag: If the sunroof and Windows are abnormal, please use the "ECU initialization" function to initialize them.
Then click “OK”

Job’s done!

Original: http://blog.eobdtool.co.uk/how-to-program-ecu-on-2016-bmw-f-series-with-cgdi-prog-bmw/

CGDI BMW Set code on 2016 BMW F series

After repairing the BMW foot spatial data, need to set code. If not, it will still have the fault. Here share the guides to use CGDI prog BMW MSV80 to set code on BMW F series.

Step 1: Connect to CGDI Prog BMW

Step 2: Backup coding

Step 3: Set code

Step 4: Test

Step 1: Connect to CGDI Prog BMW

Connect CGDI Prog BMW to the car via OBD

Connect CGDI prog BMW to PC via USB cable

Turn on the ignition switch



Step 2: Backup coding

Open CGDI BMW software

Click on “BMW F/G Series Coding”

Note: Setting code requires networking, please ensure that the network is normal and the car battery voltage is stable.

Read module data successfully

Note: Setting code is the last step. Remember to read module data firstly

Click on “Backup Coding”

Backup Coding success

Step 3: Set code

Click on “Coding”

Prompt “Whether to backup coding data”

Press “No”

Setting code…

Coding is successful

Step 4: Test

Turn on the ignition switch- test OK

Open the headlamp- test OK

Roll up and down the car windows- test OK

Honk the car horn- test OK

Done!

How to disable 2016 BMW 585 key by CGDI BMW

Q: I have some car keys for my 2016 BMW 585, but one was used infrequently. How to disable it?
A: It’s easy to do that. Here share the method to disable BMW key with CGDI Prog BMW MSV80.
Here you go.
Prepare:
Car: 2016 BMW 585
Keys:

• Key3 (No sticker on the back) – can lock and unlock.
• Key1 (with sticker on the back) – also can lock and unlock.

Device: CGDI prog BMW, PC

Guides to disable car key with CGDI Prog BMW
Note: Before disable the car key, please test whether two car keys can work normally or not.
Step 1: Connect to CGDI prog BMW
Turn on the ignition switch on
Connect CGDI prog BMW to the car via OBD
Connect CGDI prog BMW with PC via USB cable
Step 2: Disable car key
Open CGDI BMW software

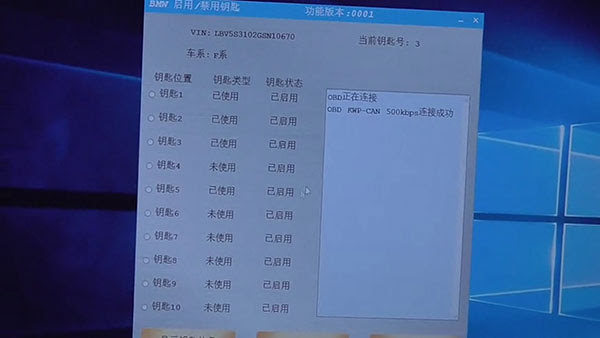

Select BMW Enable/Disable Key -> Display key information

Prompt “Please put the key vertically in the key induction areas of the direction column”

Put the key3 in induction area

Read data successfully

Select Key1 -> Disable the key

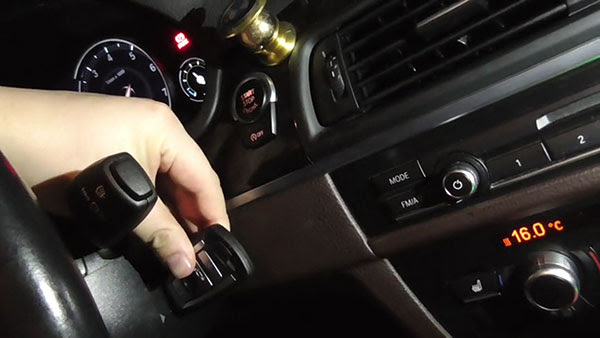

According to the prompt, put the Key1 vertically in the key induction areas of the direction column

Disable key successfully

Step 3: Test two keys
Use two keys to lock/ unlock
Key3 can work normally
Key1 cannot work
Done!

Original Post: http://blog.eobdtool.co.uk/how-to-use-cgdi-prog-bmw-to-disable-2016-bmw-585-key/

CGDI MB new NEC Adapter released

Good news!!! CGDI MB new NEC Adapter is coming! It’s different from the current NEC adapter at eobdtool.co.uk. Better choice for Mercedes owners to use.
What’s the function of the new NEC Adapter?

• The left row pin ---- for smart key
• The right row pin ---- for non smart key

An adapter helps you solve two major problems!

What is the advantage of the new NEC Adapter?
Compared with the current NEC adapter, they both support read, write and erase the original key chip, but the new NEC Adapter is more convenient, faster and more efficient than the old. Because it no need secondary welding, greatly reducing the risk of chip damage due to welding!
If you are looking for a new CGDI MB NEC Adapter, recommend you to purchase it from http://www.eobdtool.co.uk/wholesale/cgdi-mb-nec-adaper.html
Only need to pay 59.99 Euro for the new NEC Adapter with free shipping.
